Targeted muscle reinnervation pain control

Despite the large variety of surgical treatments which have been proposed to address the debilitating effects of neuroma pain after amputation, the only surgical treatment which has been shown to result in a consistent and reproducible improvement is Targeted Muscle Reinnervation (TMR) surgery.

Example of a patient who has undergone TMR surgery after a through-shoulder amputation.  After the amputation, the only anterior muscles remaining from his upper limb are the pectoralis major and pectoralis minor muscles.  These muscles are intended to move the shoulder joint – which is now absent.  During TMR surgery, the muscles are moved around and reconnected with the nerve stumps in the brachial plexus.  Now, when the patient imagines moving his hand or forearm, the muscles in his chest wall contract accordingly.

The TMR procedure involves transferring the large peripheral nerve stumps in the amputation stump and connecting them to the motor nerves of carefully selected, “target” muscles within or close to the residual limb (stump).   The target muscles that we select are usually muscles in the residual limb whose function is now redundant – because of the amputation (i.e. they were intended to move parts of the limb which no longer exist.  For example, biceps after a transhumeral amputation.

Within days, axons in the peripheral nerve stumps start to grow into the motor nerves of the target muscles and the reinnervation process begins.  However, the reinnervation process takes 12 to 18 months to be complete and you may not notice any changes yourself for 3 to 6 months after surgery.  Once the reinnervation process is complete, these muscles will be able to contract voluntarily in response to signals originating in the previously transected peripheral nerves.  For example, the median nerve can be joined (coapted) to the motor branch of the medial head of biceps.  Now, when the patient imagines moving their thumb or wrist (these are functions normally transmitted down the median nerve), then the medial head of biceps contracts and this muscle can therefore serve as a biological amplifier of the electrical signals in the median nerve stump.  Importantly, the electrical activity produced by contractions of the medial head of biceps can also be detected by electrodes placed on the skin-surface.  So, the biceps muscle can now be used to control a myoelectric prosthetic limb as well.

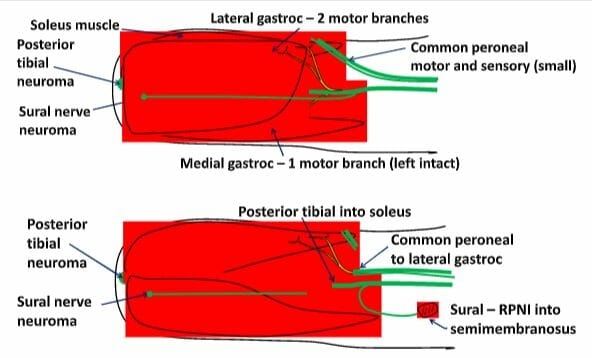

Typical nerve transfers for TMR after a below knee amputation.  The neuromas are left in-situ and the nerve transfers are performed more proximally (behind the knee).  This patient complained of neuroma-related pain arising from the superficial branch of the peroneal nerve and from the end of the posterior tibial nerve.  The superficial (sensory) branch of the peroneal was joined to the motor nerve supplying the lateral gastrocnemius muscle.  The main trunk of the posterior tibial nerve was joined to the motor nerve branch supplying remnants of the soleus muscle.  The common peroneal nerve was joined to the motor branch of the lateral gastrocnemius muscle.  The relief of pain from the neuromas is usually immediate.  However, relief from PLP can take some months and typically occurs once the patient regains voluntary control over the re-innervated muscles.

We now believe that the way in which TMR is able to relieve neuroma pain is by reducing the sensitivity of the peripheral nerve by providing it with feedback from the target muscle.  This same feedback also reduces phantom limb pain by providing feedback to the central nervous system that is normally absent when a limb is amputated.

Aftercare/pain Control

Patients undergoing TMR surgery alone (i.e. not in combination with Osseointegration) will generally go home on the same day as surgery.  The only exception is for patients with a very high transhumeral or through shoulder amputation where it is likely that they will need to have exploration of their brachial plexus.  Such patients need to be admitted overnight – for pain control.

Patients undergoing TMR surgery alone will need to take all their normal pain medications before surgery and should expect a significant increase in their phantom limb pain which may be maximal at 3 – 6 months after treatment.  We advise our patients that they will need to increase their intake of pain medications in line with their symptoms and may wish to consider doing so 1 -2 weeks before the surgery is performed.  The actual pain of surgery is usually minimal and easily controlled with simple analgesics or mild opiates – taken for a few days.

After TMR surgery, your incision will be closed (typically) with absorbable sutures which do not need to be removed.  You may wash and shower with running water immediately after surgery but should avoid any heavy use of the limb for 2-3 weeks.  Importantly, you must not use your prosthesis until the wound has healed (3 weeks) and any associated soft-tissue swelling has resolved.

Detectable reinnervation of the muscles will occur as early as 4 weeks after surgery but will reach a maximum at 12 – 18 months.  During this time, patients who are having TMR surgery for improvement of bionic limb control must undergo close rehabilitation with a rehabilitation unit that is experienced in the use of computerised feedback techniques.  This will allow the amputee to learn to use the reinnvervated muscles to the best of their ability and helps to reinforce and strengthen the reinnvervation pathways.

You do not need any specific rehabilitation exercises if you are undergoing TMR surgery to deal with neuroma pain.  However, it has been our experience that patients who learn to use their reinnervated muscles quickly also observe more rapid resolution of their phantom limb pain.
